Ultrasonic Vibro System
Ultrasonic sieve machine suitable to sieve power, which is light density, low humidity, easy adhesion or a static of the powder and super fine powder, and improve the sieving efficiency. It is widely used in carbonize silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc. It can completely solve the difficult technology problems that other screening machines cannot solve.
The ultrasonic sieve machine apply an ultrasonic vibration directly to the screening mesh. The vibrating sieve action injects a secondary high frequency, low amplitude vibration to improve mesh deblinding and screener performance.
The ultrasonic sieve machine a highly efficient Control Unit in either 110 or 220 volts. Touch panel controls enable many of the settings to be easily adjusted by the operator - allowing for optimal performance. The ultrasonic vibrating sieve action greatly increases mesh life, since there is no harsh abrasive action to impair tension and cause wear.
Advantages of the Ultrasonic Vibro System
- Increased sieving rates up to 10x
- Multiple deck screening with one ultrasonic generator100% utilization of screen surface
- Indirect ultrasonic vibration application enables longer screen life - no tearing or hot spots
How it works
Attached to the ultrasonic vibration sieve wave, make ultra-fine ultrasound accept huge acceleration, thereby inhibiting adhesion, friction, flat down, wedging and other factors blocking network, improve network efficiency screening efficiency and clean.

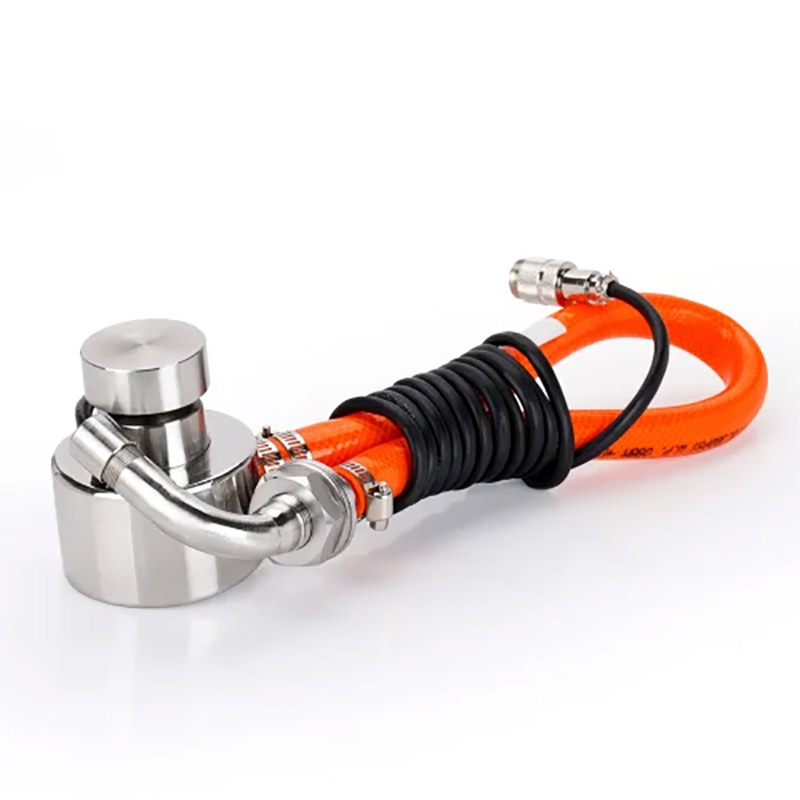

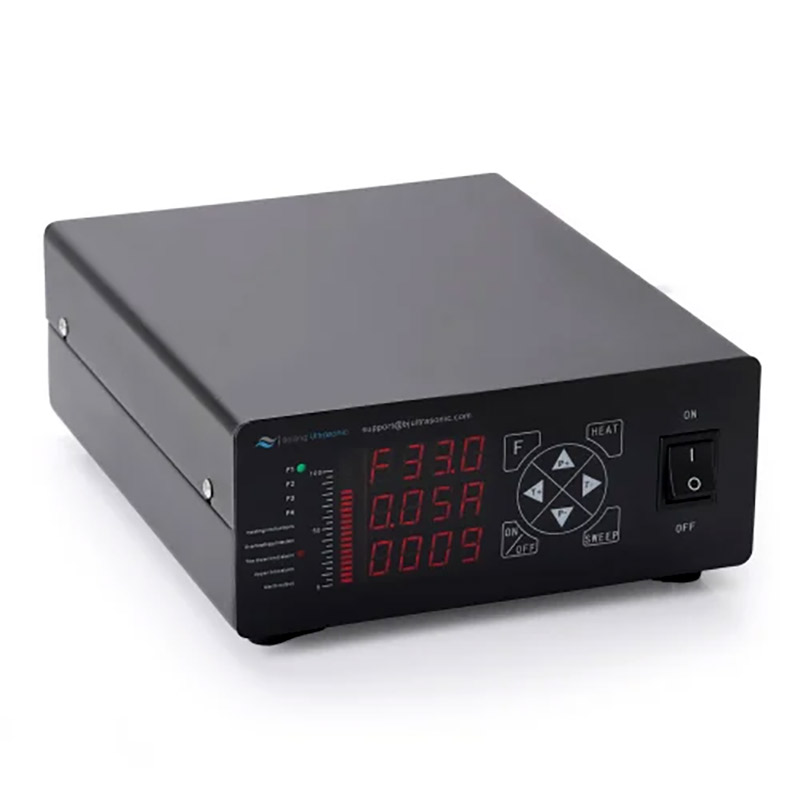

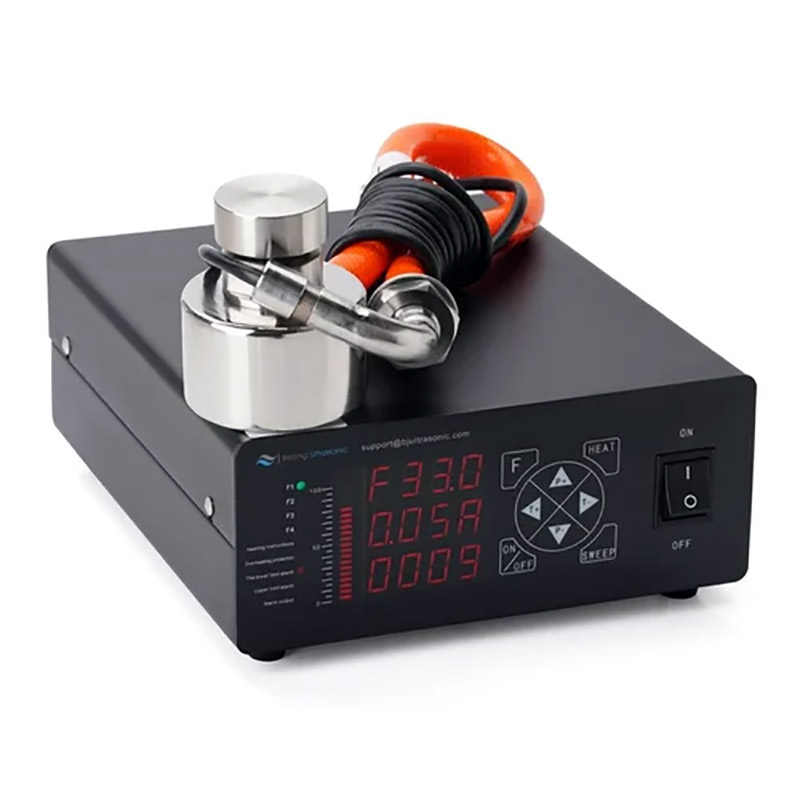

Ultrasonic Vibro Sifter With Internal Transducer
Minimum Order Quantity: 1 Piece
Main technical parameters of Digital Ultrasonic Vibro System :
| Generator Power: | 33Khz 300 Watt |
|---|---|
| Transducer: | 33 Khz 100 Watt |
| Generator Cabinet Size: | 255*220*90mm (L*W*H) |
| Transducer Case Dia: | 74 mm |
| Transducer Case Height: | 75 mm |
| Bolt Size: | M20 * 1.5 mm |
| Working voltage: | 200V-240V |
| Application: | Non-Food Industries |

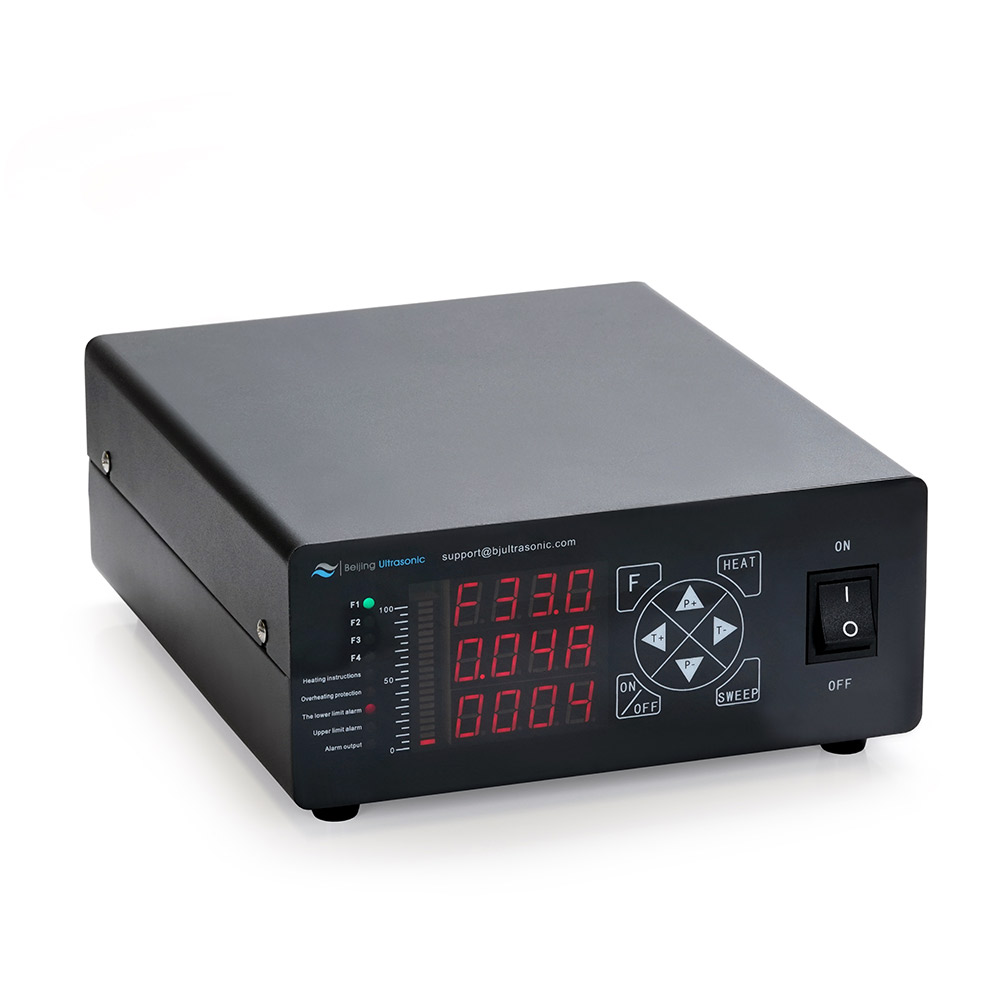

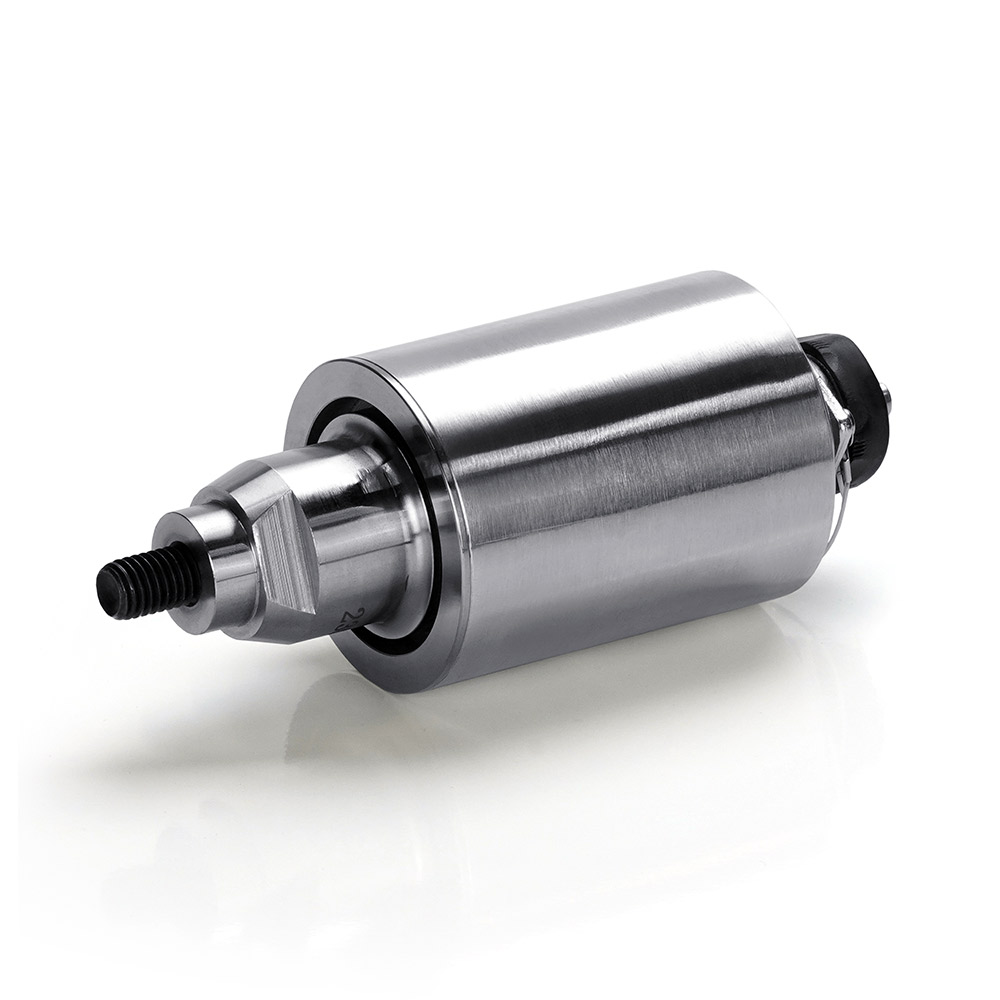

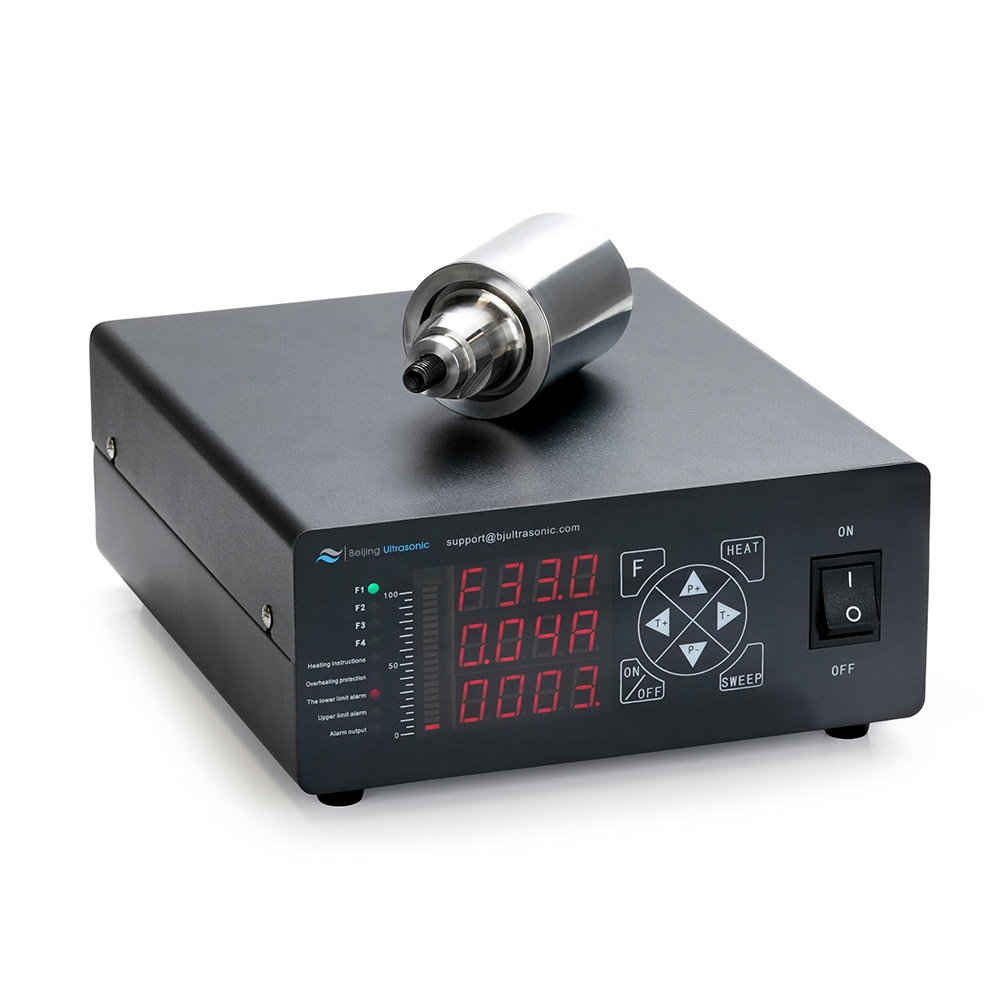

Ultrasonic Vibro Sifter With External Transducer
Minimum Order Quantity: 1 Set
Main technical parameters of Digital Ultrasonic Vibro System:
| Generator Power: | 33Khz 300 Watt |
|---|---|
| Transducer: | 33 Khz 100 Watt |
| Generator Cabinet Size: | 255*220*90mm (L*W*H) |
| Transducer Case Dia: | 57 mm |
| Transducer Case Height: | 127 mm |
| Bolt Size: | M20 * 1.5 mm |
| Working voltage: | 200V-240V |
| Application: | Food Industries |
