Ultrasonic Bath
What is an Ultrasonic Bath and how does it work?
Ultrasonic baths are a cleaning method that uses ultrasound and a liquid to clean objects. Because it is reliable, it is often used for the final cleaning of components and tools. Ultrasonic baths use Cavitation bubbles induced by high-frequency pressure (sound) waves to agitate a liquid. The ultrasound (usually 40 kHz , 80 kHz & 120 kHz) waves. The accumulative effect of the millions of imploding bubbles is what causes the cleaning effect of ultrasonic cleaning.
What are the Advantages of ultrasonic baths?
The benefits of the bath are many. Is one of the most effective cleaning methods. It has many advantages, especially compared to manual cleaning.
- The bath cleans a wide range of contaminants and bacteria like grease, oil, dirt, dust, rust, pigment, and more.
- Excellent and reliable cleaning: Ultrasonic cleaning removes the dirt and the smallest particles. After a complete cleaning cycle with the proper cleaning fluid, parts will be free of dirt.
- Gentle and safe: The use of the bath is very safe and will not damage the tools. If follow the manufacturer's instructions.
- A bath can clean the most difficult places. Effective and thorough cleaning.
- Tools can be cleaned at the same time: If the volume of the device is large, several toolscan be cleaned at the same time.
- Easy and simple to operate.
- Simple and inexpensive maintenance.
How long does it take to clean
The cleaning time varies and depends on a number of factors such as the size of the device, the power of the device. In general, you can clean most parts in 2-10 minutes, and up to 20 minutes for large and particularly dirty dishes.
Frequencies
The frequency of ultrasonic waves is important and effective. You should look at the specificfrequency range.
- 40 kHz: This is Suitable for cleaning coins, jewellery and all standard things.
- 80 kHz: This frequency works best for parts with lots of items and complex geometry. For example, objects with small holes, fine threads, and other complex features.
- 120 kHz or more: They have a not high cavitation force and their main job is for the removal of the tiniest particles. Their main applications are mainly in the medical and optical industries, to remove dust from sensitive places and more.
What is the most common?
Unless you have specific requirements, the best ultrasonic cleaning frequency to use is 40 kHz or something close to it, like 33 kHz.

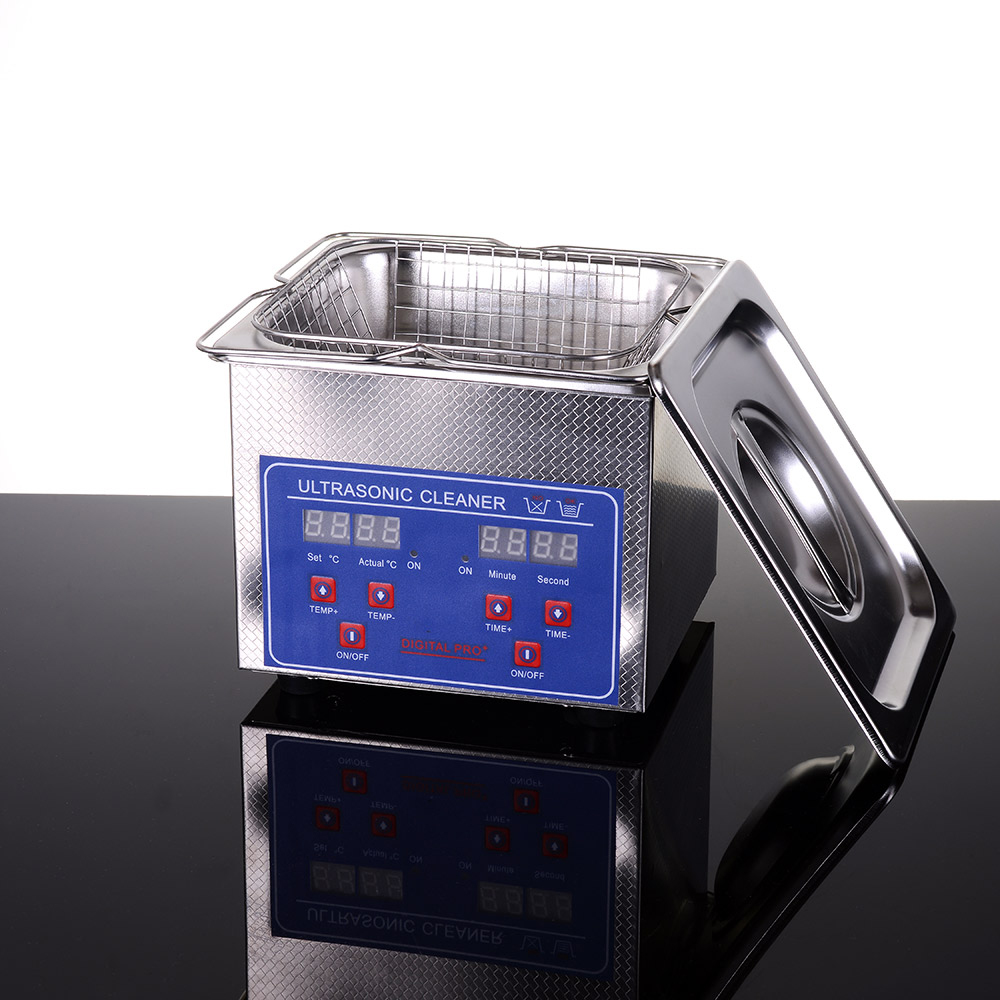

Digital Ultrasonic Cleaner 1.3 Ltr.
| Tank Litre: | 1.3 ltr. |
|---|---|
| Frequency: | 40 Khz |
| Ultrasonic Power: | 60 Watt |
| Heater Power: | 50 Watt |
| Timer: | 0 - 30 Min |
| Temperature Adjustable: | 20 - 80 Degree |
| Drain: | Not Available |
| Tank Size: | L*B*H (mm) 150 * 140 * 65. |
| Machine Size: | L*B*H (mm) 180 * 170 * 140. |
| Unit Weight: | 2.5 Kg |

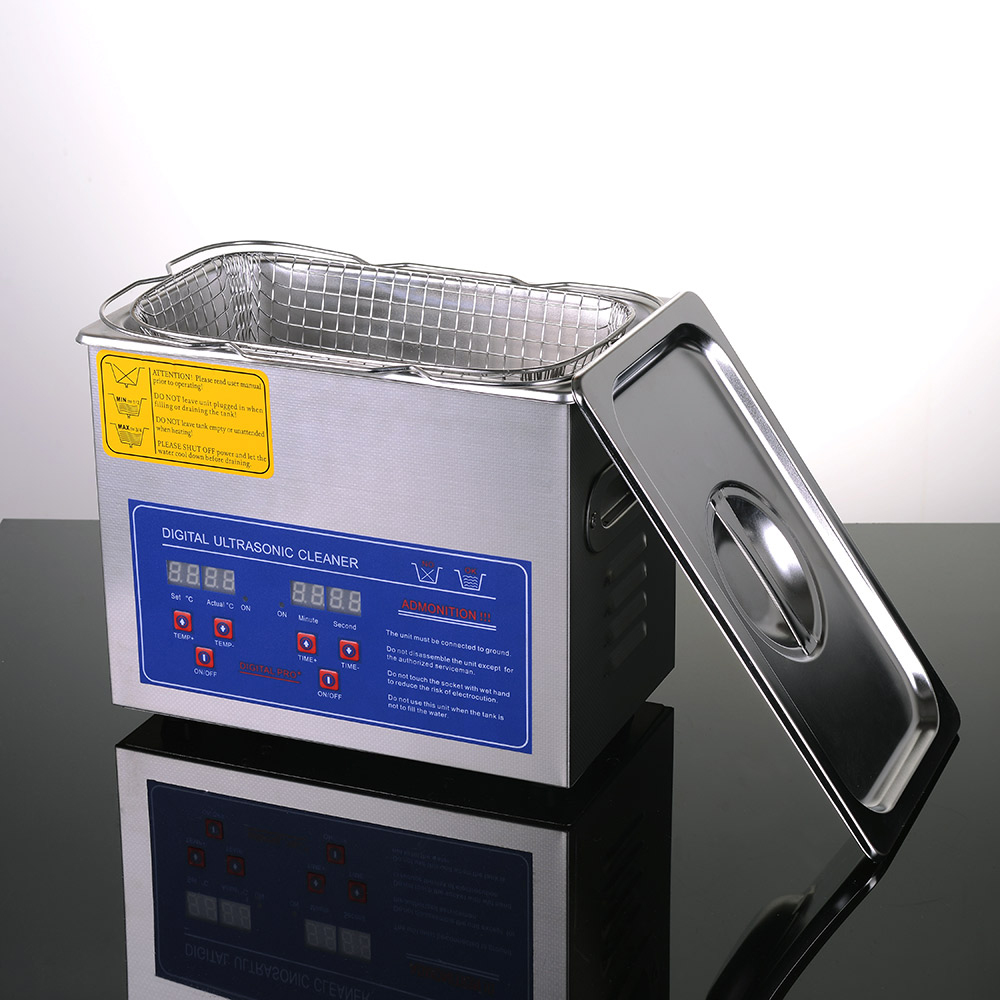

Digital Ultrasonic Cleaner 3.0 Ltr.
| Tank Litre: | 3.0 ltr. |
|---|---|
| Frequency: | 40 Khz |
| Ultrasonic Power: | 120 Watt |
| Heater Power: | 100 Watt |
| Timer: | 0 - 30 Min |
| Temperature Adjustable: | 20 - 80 Degree |
| Drain: | Not Available |
| Tank Size: | L*B*H (mm) 240 * 135 * 100. |
| Machine Size: | L*B*H (mm) 270 * 170 * 210. |
| Unit Weight: | 4.0 Kg |

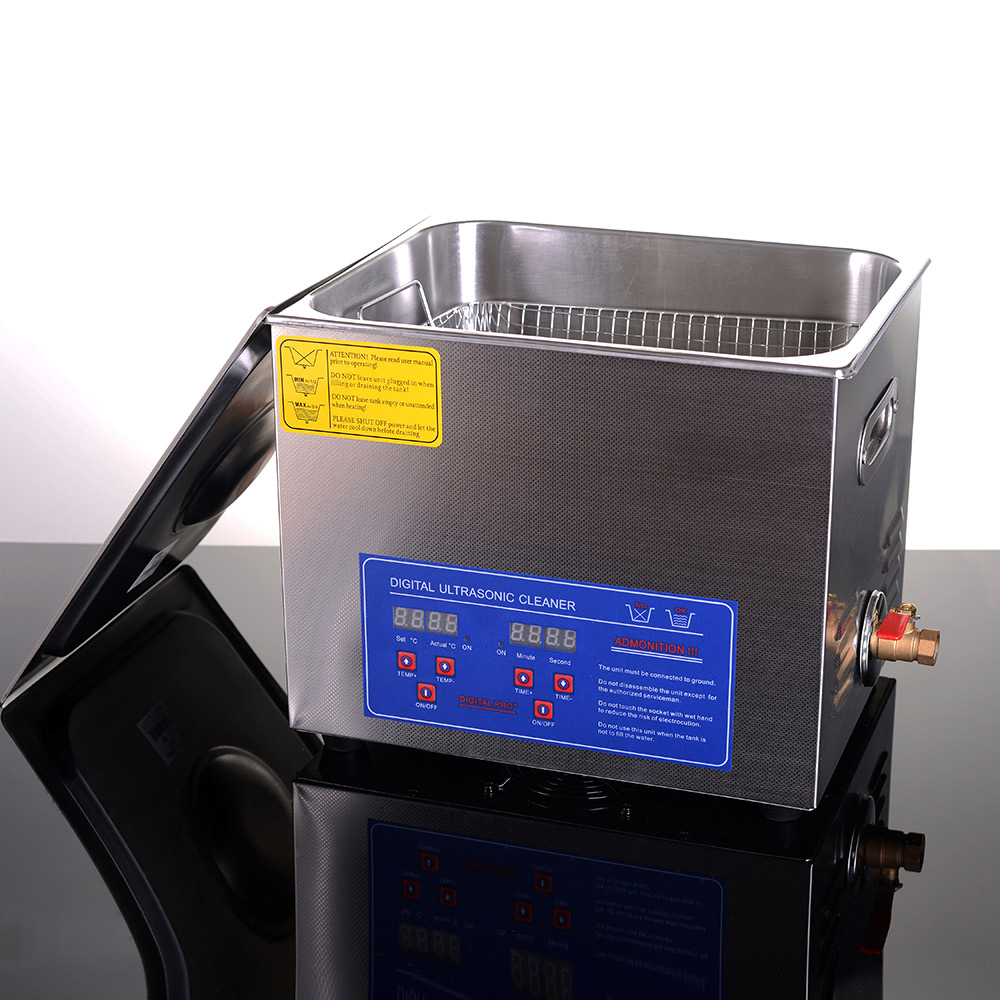

Digital Ultrasonic Cleaner 10 Ltr.
| Tank Litre: | 10 ltr. |
|---|---|
| Frequency: | 40 Khz |
| Ultrasonic Power: | 240 Watt |
| Heater Power: | 250 Watt |
| Timer: | 0 - 30 Min |
| Temperature Adjustable: | 20 - 80 Degree |
| Drain: | Available |
| Tank Size: | L*B*H (mm) 300 * 240 * 150. |
| Machine Size: | L*B*H (mm) 330 * 270 * 270. |
| Unit Weight: | 8.5 Kg |

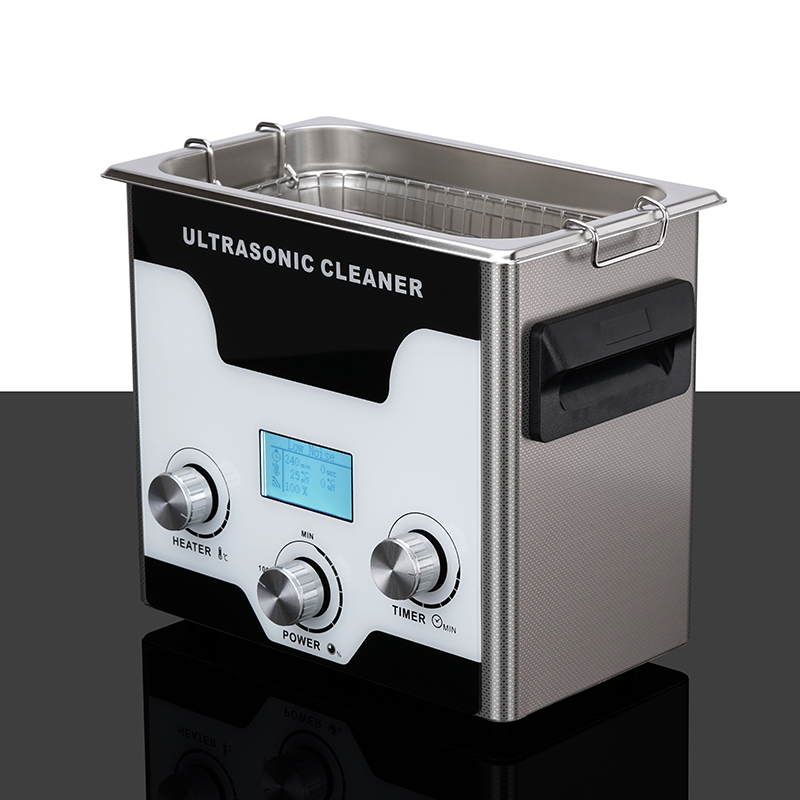

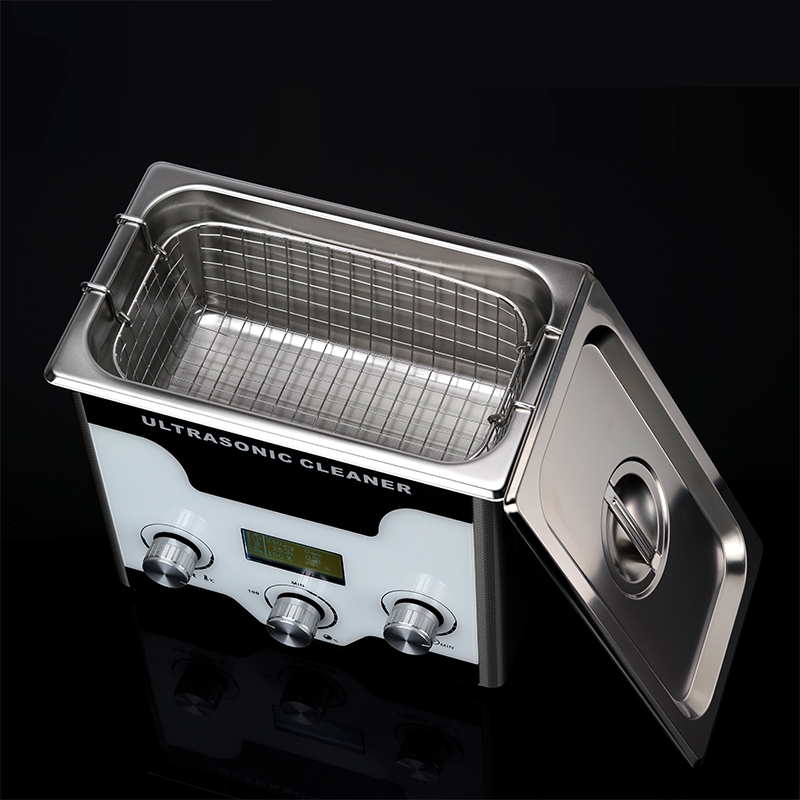

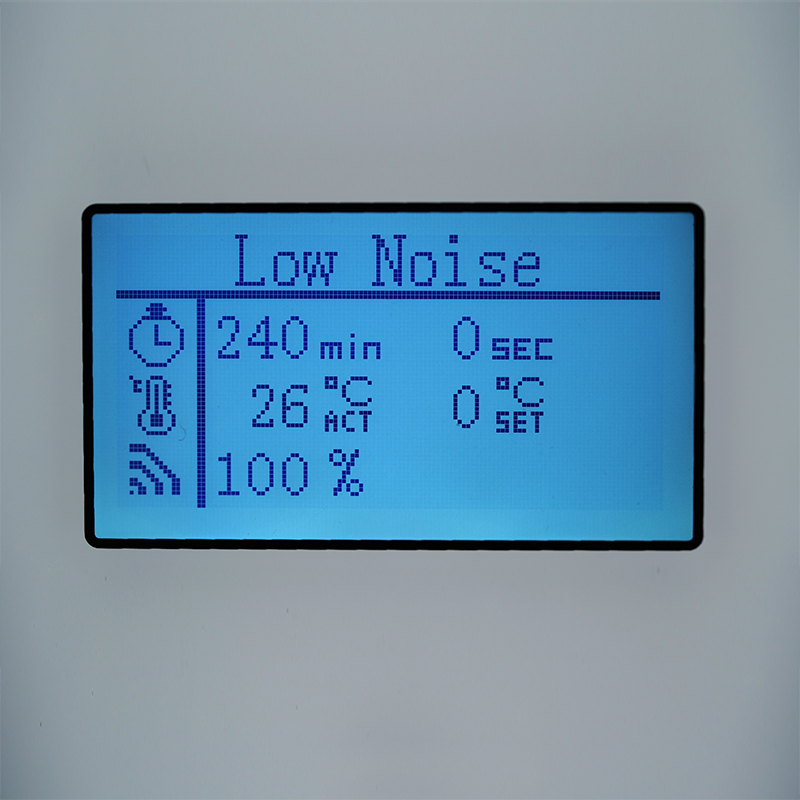

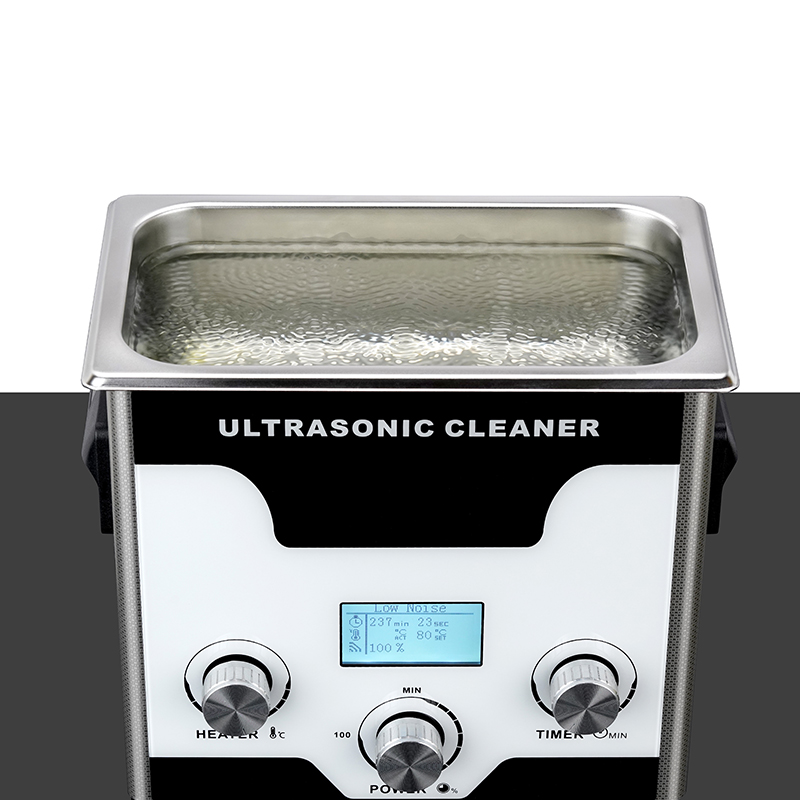

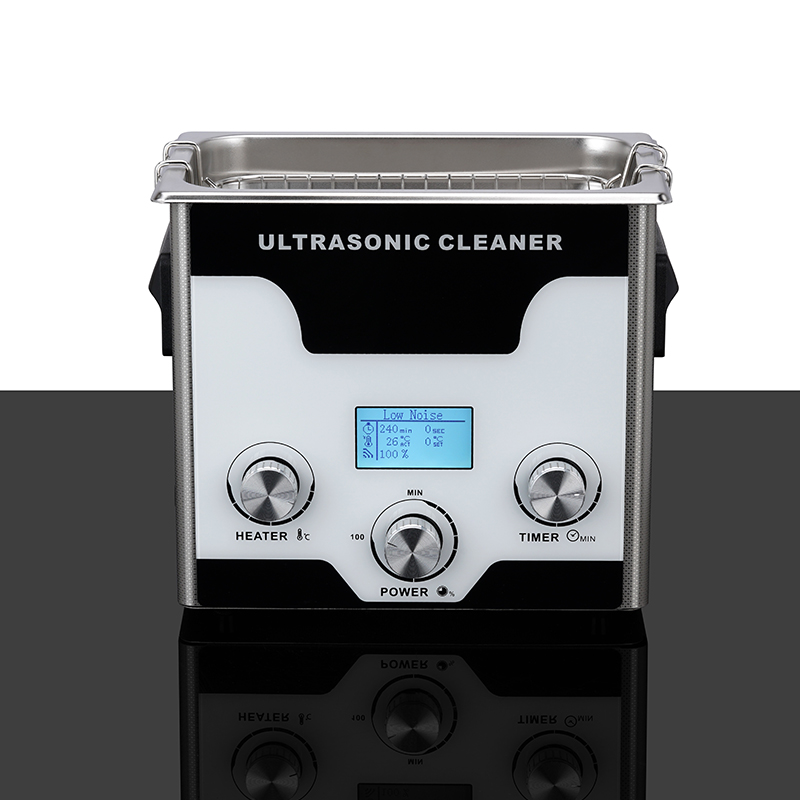

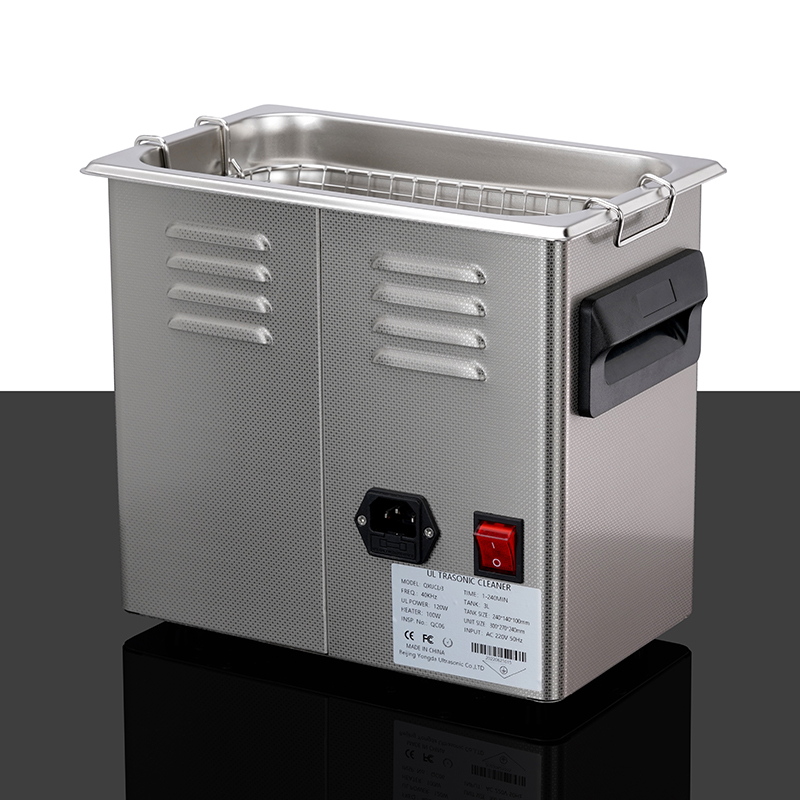

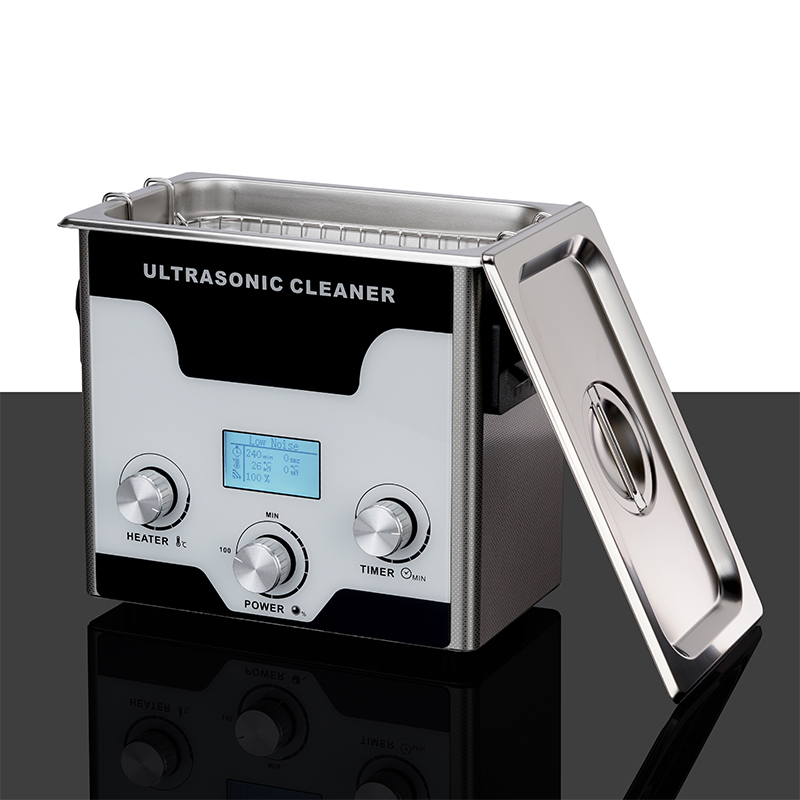

Analog Ultrasonic Cleaning Bath 40 Khz
Minimum Order Quantity: 1 Piece
| Key Benefits: | Easy to Operate, Ready to Use, Directly Plug & Play |
|---|---|
| Performance: | Uniform Vibration, Uniform Ultrasonic Power, Uniform Frequency |
| Key Function: | Power Switch, Ultrasonic Power +/- 240 Min Timer & Sweep Freq |
| Warranty Heater: | Condition Apply * |
| Warranty & Gurantee: | One Year |
Specification: Analog Ultrasonic Cleaning Bath
| Tank Volume Ltr |
Ultrasonic Power |
Heating Power |
Machine Size (MM) L*B*H |
|---|---|---|---|
| 3 ltr | 120 Watt | 100 W | 300 * 270 * 240 |
| 6 ltr | 180 Watt | 300 W | 380 * 180 * 290 |
| 10 ltr | 240 Watt | 500 W | 380 * 270 * 290 |
| 15 ltr | 360 Watt | 500 W | 390 * 325 * 290 |
| 22 ltr | 480 Watt | 500 W | 580 * 325 * 290 |
| 33 ltr | 600 Watt | 500 W | 580 * 325 * 340 |

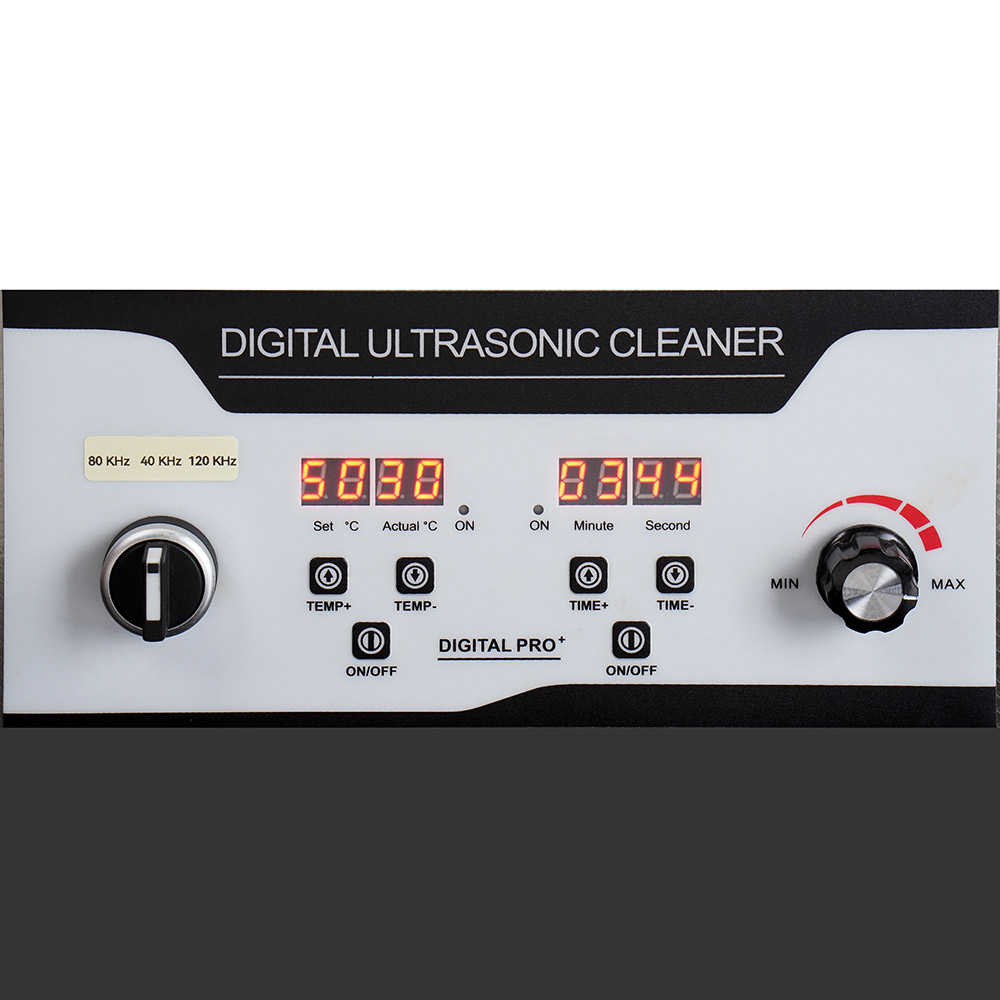

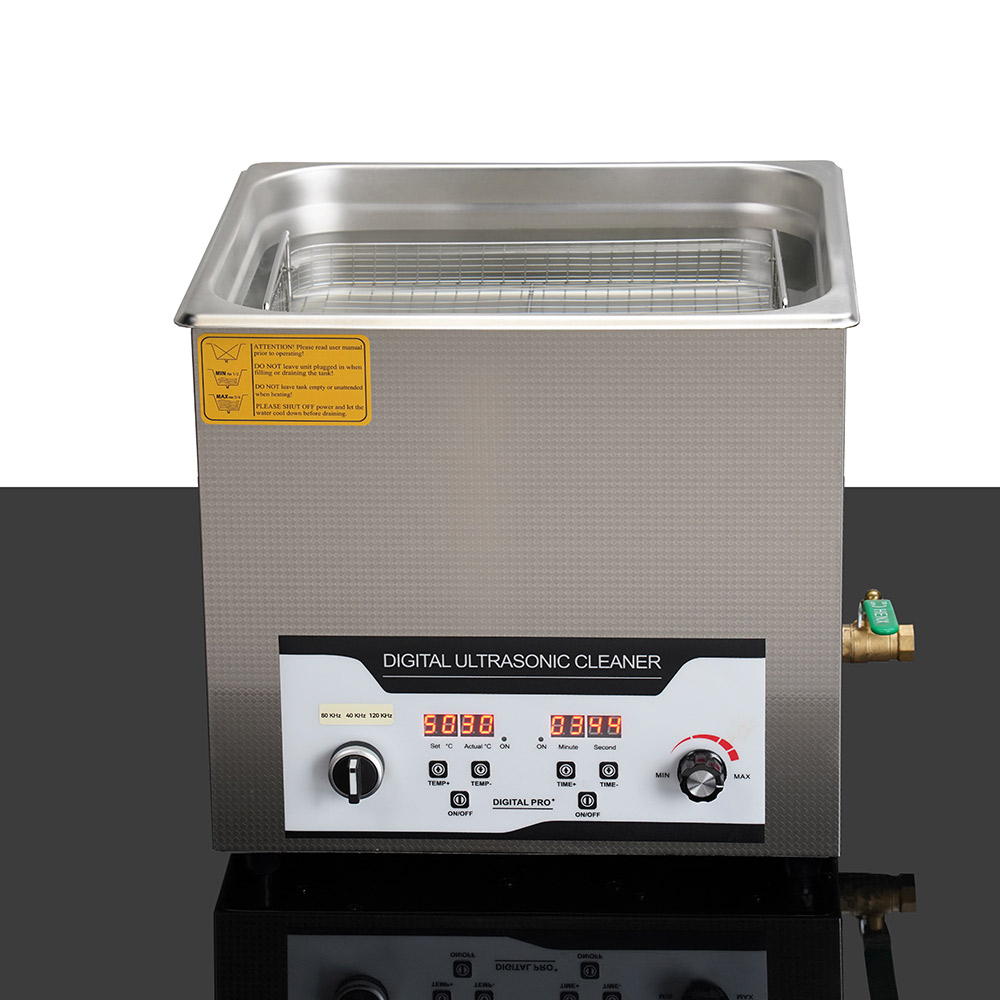

Triple Frequency Ultrasonic Bath: 40/80/120 Khz
| Tank Litre: | 15 ltr |
|---|---|
| Frequency: | 40/80/120 Khz |
| Ultrasonic Power: | 360 Watt |
| Heater Power: | 400 Watt |
| Timer: | 0 - 30 Min |
| Ultrasonic Frequency Adjustable: | Yes Available |
| Ultrasonic Power Adjustable: | 0 - 100 |
| Temperature Adjustable: | 20 - 80 Degree |
| Drain: | Available |
| Tank Size: | L*B*H (mm) 330 * 300 * 150. |
| Machine Size: | L*B*H (mm) 360 * 330 * 310. |
| Unit Weight: | 13 Kg |
