Ultrasonic Cleaning
Transducer
What is the Ultrasonic Cleaning Transducer
It converts the high-frequency electric signal of an ultrasonic cleaning system to sound waves in the cleaning solution. These systems are made up of an ultrasonic generator, transducer and a tank to hold the cleaning solution.
Advantage of Ultrasonic Cleaning Transducer
Ultrasonic cleaners remove contaminants without abrasion, harsh scrubbing, or high-pressure sprays, making them ideal to clean even the most delicate parts. This is why they are used to clean microchips, computer parts, plated parts, and irreplaceable family heirlooms.
Typical Application of Ultrasonic Cleaning Transducer
- Ultrasonic cleaning system
- Ultrasonic cleaner
- Ultrasonic cleaning equipment
- Medical ultrasonic cleaner
- Jewellery ultrasonic cleaner
- Jewellery cleaner
Main Features of Ultrasonic
Cleaning Transducer
- High efficiency
- High amplitude and high vibration speed
- Lower heat
- High reliability
- Easy for assembling
- High electro acoustic transformation efficiency
- Uniform frequency
- Uniform power
- Uniform pibration

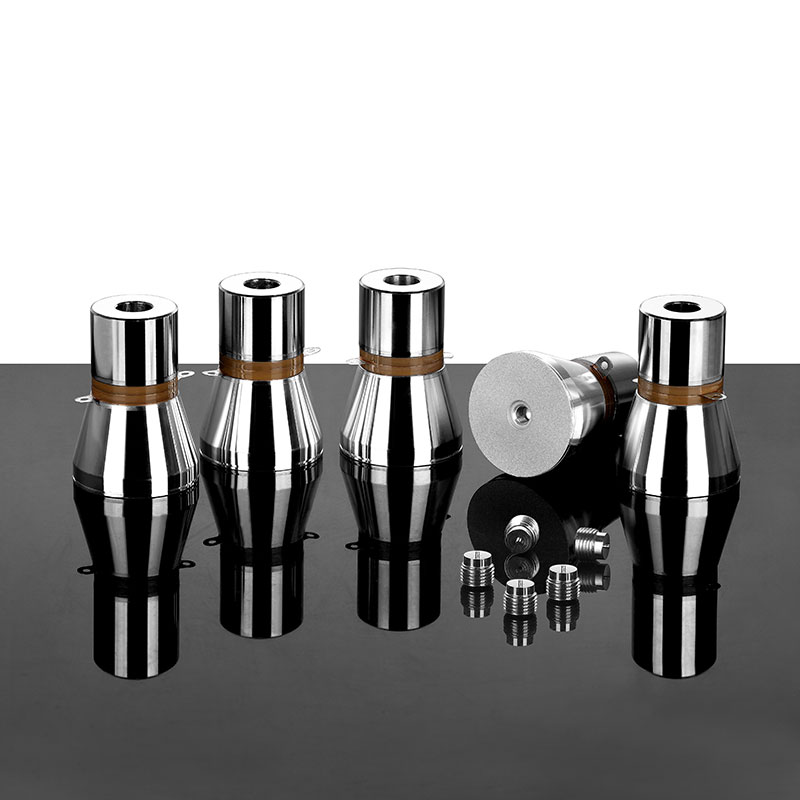

20 KHz - 100 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 20100T- 68HN PZT- 8 |
|---|---|
| Static Capacity: | 5100 pF |
| Frequency: | 20 KHz |
| Input Power: | 100 Watt |
| Stud: | S.S.10 mm |
| Length: | 94 mm |
| Radiating Surface: | 71 mm |
| Weight: | 900 Grams Per Pcs |
| No of Qty in One Box: | 20 Pcs |
| Size of the Carton: | 37 x 30 x 13 cm |

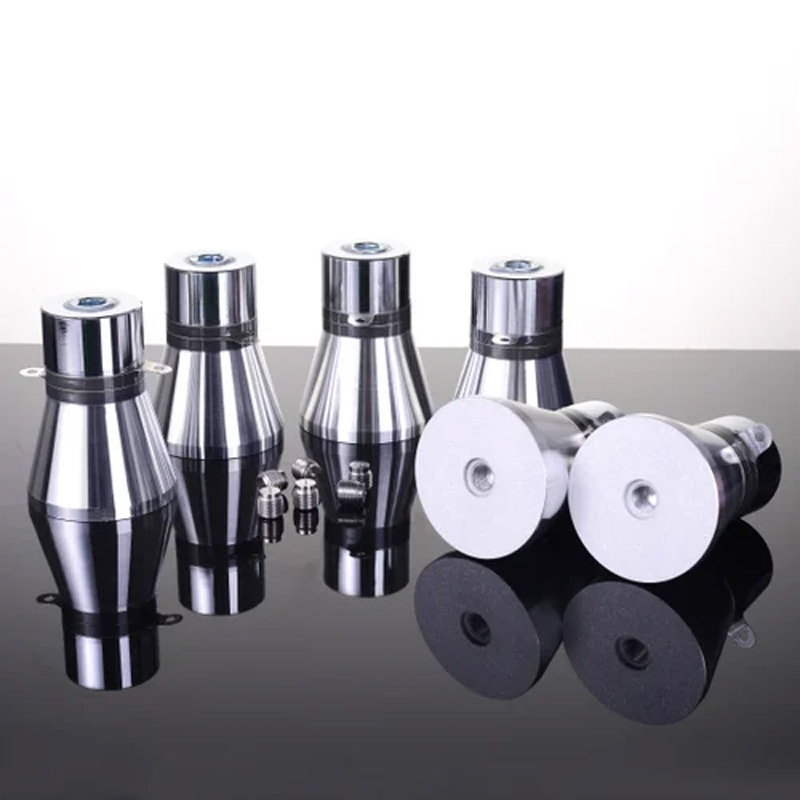

25 KHz - 60 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 2560T- 59HS PZT- 4 |
|---|---|
| Static Capacity: | 5400 pF |
| Frequency: | 25 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 77 mm |
| Radiating Surface: | 59 mm |
| Weight: | 530 Grams Per Pcs |
| No of Qty in One Box: | 36 Pcs |
| Size of the Carton: | 40 x 40 x 11 cm |
33 KHz 60 Watt Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 3360T- 48HSPZT- 8 |
|---|---|
| Static Capacity: | 3800 pF |
| Frequency: | 33 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 62 mm |
| Radiating Surface: | 45 mm |
| Weight: | 420 Grams Per Pcs |
| No of Qty in One Box: | 36 Pcs |
| Size of the Carton: | 40 x 40 x 11 cm |

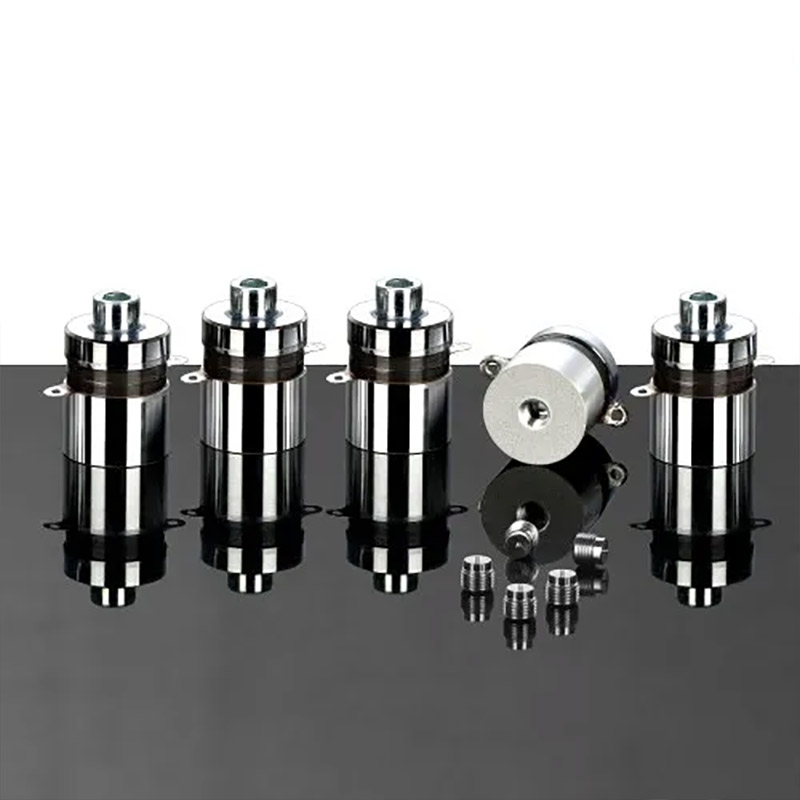

80 KHz - 60 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 8060T- 40SS - PZT- 4 |
|---|---|
| Static Capacity: | 5400 pF |
| Frequency: | 80 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 62 mm |
| Radiating Surface: | 40 mm |
| Weight: | 316 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |
120 KHz - 60 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 12060 T - 40SS PZT- 4 |
|---|---|
| Static Capacity: | 5400 pF |
| Frequency: | 120 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 59 mm |
| Radiating Surface: | 39 mm |
| Weight: | 365 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |

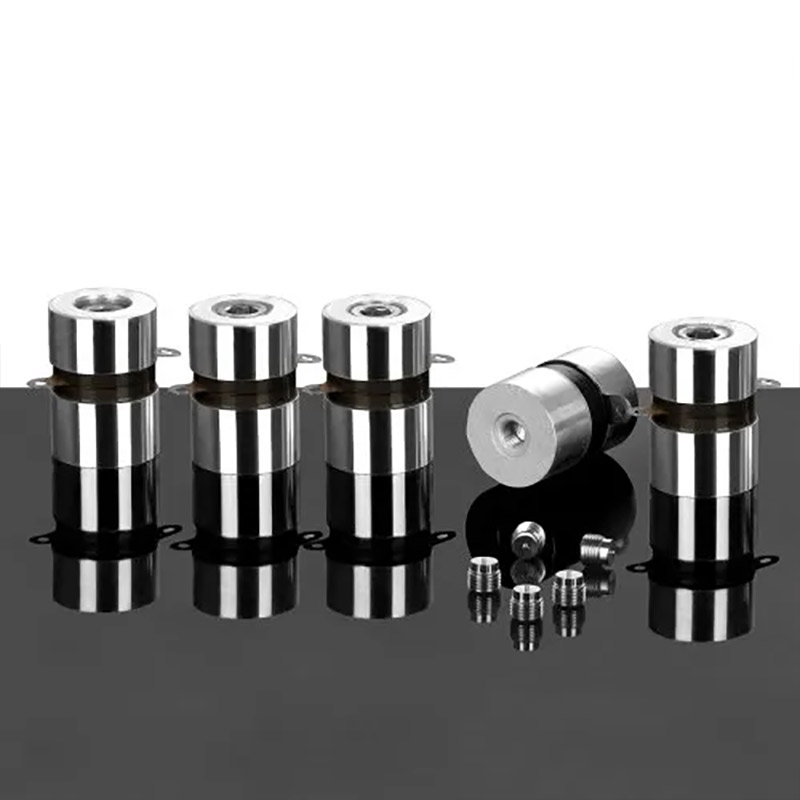

135 KHz - 50 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 13550T- 36SS PZT- 4 |
|---|---|
| Static Capacity: | 4200 pF |
| Frequency: | 135 KHz |
| Input Power: | 50 Watt |
| Stud: | S.S.10 mm |
| Length: | 54 mm |
| Radiating Surface: | 37 mm |
| Weight: | 215 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |

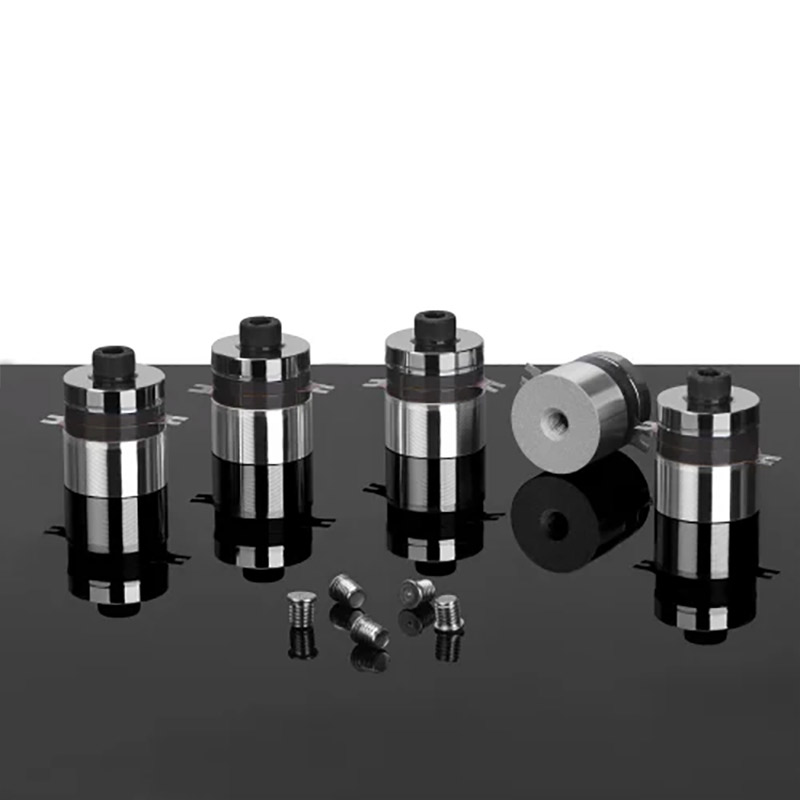

200 Khz - 30 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 10 Piece
| Type: | BJC - 20030T- 31SS PZT- 4 |
|---|---|
| Static Capacity: | 3200 pF |
| Frequency: | 200 KHz |
| Input Power: | 30 Watt |
| Stud: | S.S.10 mm |
| Length: | 42 mm |
| Radiating Surface: | 31 mm |
| Weight: | 126 Grams Per Pcs |
| No of Qty in One Box: | 50 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |

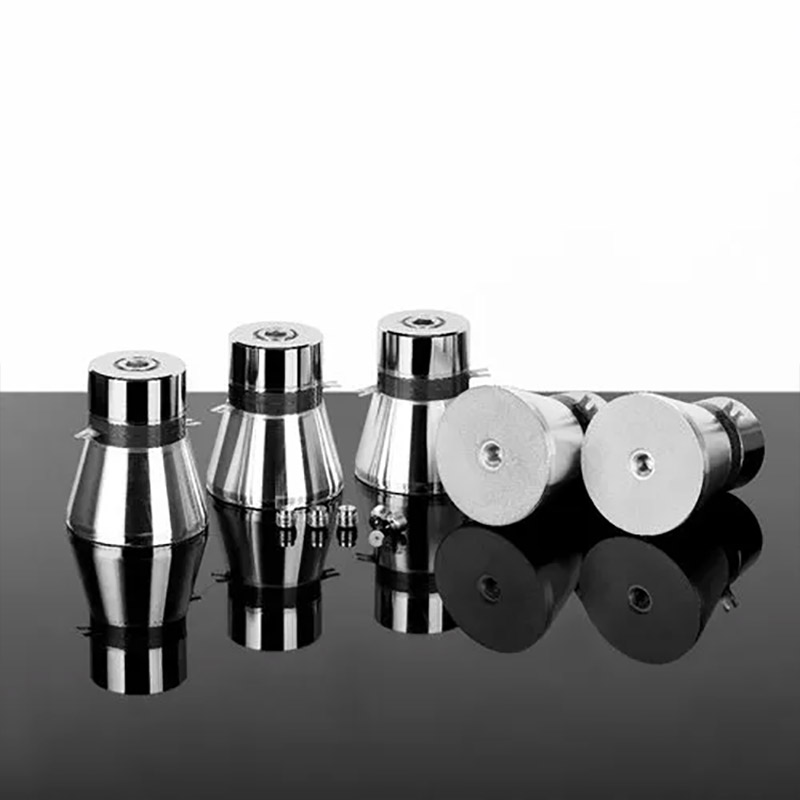

25 KHz - 100 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 25100T- 68HS PZT- 4 |
|---|---|
| Static Capacity: | 6600 pF |
| Frequency: | 25 KHz |
| Input Power: | 100 Watt |
| Stud: | S.S.10 mm |
| Length: | 77 mm |
| Radiating Surface: | 66 mm |
| Weight: | 710 Grams Per Pcs |
| No of Qty in One Box: | 30 Pcs |
| Size of the Carton: | 46 x 39 x 11 cm |
40 KHz - 50 Watt Ultrasonic Cleaning Transducers
Minimum Order Quantity: 5 Piece
| Type: | BJC- 4050T- 45HSPZT- 4 |
|---|---|
| Static Capacity: | 4100 pF |
| Frequency: | 40 KHz |
| Input Power: | 50 Watt |
| Stud: | S.S.10 mm |
| Length: | 48 mm |
| Radiating Surface: | 45 mm |
| Weight: | 254 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |

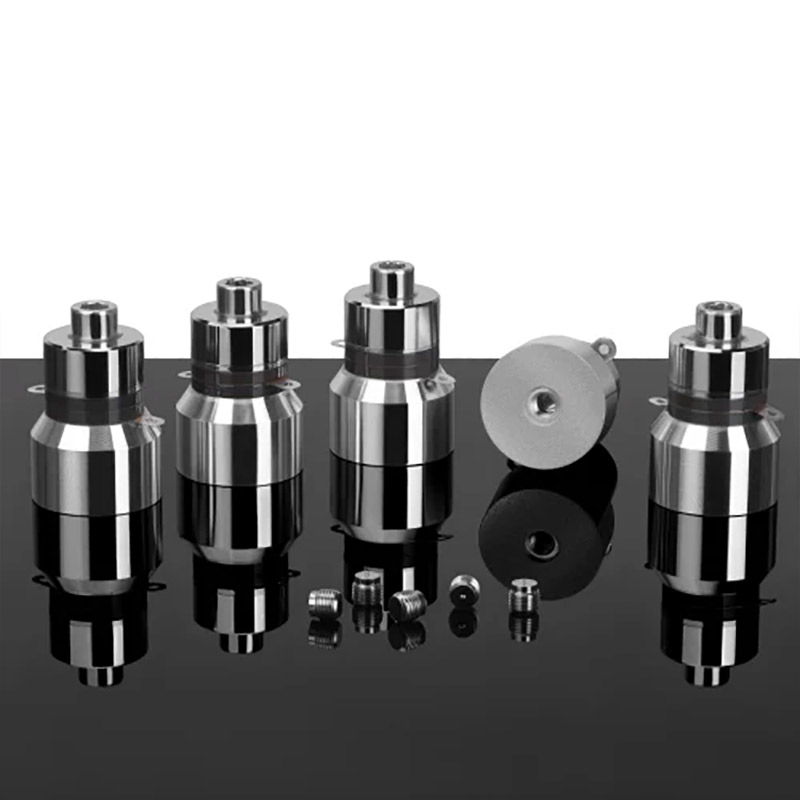

68 KHz - 60 Watts Ultrasonic Cleaning Transducer
Minimum Order Quantity: 20 Piece
| Type: | BJC- 6860T- 49HS SPZT- 8 |
|---|---|
| Static Capacity: | 3800 pF |
| Frequency: | 68 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 80 mm |
| Radiating Surface: | 49 mm |
| Weight: | 350 Grams Per Pcs |
| No of Qty in One Box: | 36 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |
100 KHz 40 Watt Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 10040T- 40SHPZT- 4 |
|---|---|
| Static Capacity: | 5100 pF |
| Frequency: | 100 KHz |
| Input Power: | 40 Watt |
| Stud: | S.S.10 mm |
| Length: | 53 mm |
| Radiating Surface: | 39 mm |
| Weight: | 289 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |
170 KHz 60 Watt Ultrasonic Cleaning Transducer
Minimum Order Quantity: 5 Piece
| Type: | BJC - 17060T- 62SHPZT- 4 |
|---|---|
| Static Capacity: | 5100 pF |
| Frequency: | 170 KHz |
| Input Power: | 60 Watt |
| Stud: | S.S.10 mm |
| Length: | 55 mm |
| Radiating Surface: | 37 mm |
| Weight: | 238 Grams Per Pcs |
| No of Qty in One Box: | 49 Pcs |
| Size of the Carton: | 41 x 41 x 10 cm |
